IM.FL.01 Sliding Gate

Place of Origin: PRC
Brand Name: DOOR
Certification: CE / IS09001
Model Number: IM.LB.08
Minimum Order Quantity: 1 lane
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 10-15 working days
Payment Terms: T/T
Supply Ability: 1000 units/month

This sliding gate runs smooth and stands up to heavy use.
It’s got smart sensors that know when to open and close, plus dual‑authorization and indicator lights that tell you what’s happening at a glance.
Built to make access safe and simple — whether it’s a public facility or a private site.

Product Features

The IM.FL.01 sliding gate is built for spots where things come and go all day — vehicles, forklifts, people. It’s straightforward, no‑nonsense access control.

Works with whatever system you already have
The gate takes a standard relay signal, so it connects easily to most access control systems out there. RFID, license plate readers, QR codes, fingerprint, face recognition — if your system can send a signal, this gate can work with it. No need to rip out what you already use.

Different modes for different times of day
You can run it in normally closed mode — locked or unlocked, your call. Or switch to peak traffic mode when things get busy. That way, you’re not slowing people down during rush hours when security can be a bit more relaxed.

It doesn’t let things get crushed
There are 6 pairs of infrared sensors watching the gate’s path. If a person, a pallet, or a truck’s mirror is in the way, the gate stops or reverses. Combined with the built‑in logic that prevents closing on someone and the mechanical obstacle detection, you’ve got three layers of protection. It’s hard to accidentally hit anything.

Tells you when something’s off
The system runs a self‑check when it powers up. If something goes wrong during operation — like a sensor acting up or the motor struggling — it lets you know with a light or a beep. No guessing games when you’re trying to get things back online.

Logs everything, connects to your management software
The gate feeds data to your access controller, which can push it to whatever platform you use for tracking. You’ll see who or what went through, when, and which direction. Good for attendance, vehicle logs, or just keeping an eye on things.

Drops open when the power goes out
If the power cuts, the gate swings open automatically — fire code requirement, but also just common sense. When power comes back, it runs a quick self‑check and goes back to normal.

Materials & Design

This gate is built for the long haul. It’s heavy, it’s sturdy, and it’s meant to sit outside and take whatever gets thrown at it.

Metal that holds up
The cabinet and gate panel are either stainless steel or aluminum alloy, depending on what makes sense for your site. Both are corrosion‑resistant, and the finish is either brushed or powder‑coated. It’s not going to rust out after a couple of rainy seasons.

Sliding mechanism that doesn’t complain
The gate rides on heavy‑duty rails with rollers that keep things smooth and quiet. The motor is a high‑torque unit — servo or DC, both do the job. Starts and stops are steady, not jerky. Rails are treated so they don’t rust up even if they’re sitting in dust or rain all year.

No sharp corners
Every edge is rounded. Not just for looks — it means if someone bumps into it or you’re working nearby, you’re not catching a sharp edge. The gate panel edges are finished too, so there’s less risk if someone gets too close.

Wide opening when you need it
When the gate slides open, you get a clear, wide passage. People walk through easily, and forklifts or small trucks don’t have to squeeze. Width can be adjusted to fit your site — just let us know what you need.

Lights tell you what’s happening
There’s an LED bar on the front that shows red or green — easy to see from a distance whether access is open or not. Side lights tie into the system too, so you get a visual cue when the gate is about to move. Makes things a bit more obvious, and honestly, it looks pretty sharp.

Applications

This gate fits places where you’ve got a mix of vehicles and people coming through, and you don’t want to babysit it all day.

Industrial parks and factories

Places like factories, logistics parks, and tech campuses need to control who comes in, but they also need trucks and forklifts to move without stopping every five seconds. The wide opening handles vehicles easily, and you can pair it with license plate readers or card systems so it runs itself most of the time.

Warehouses and distribution centers

These spots see constant traffic — pallets, forklifts, delivery vans. The gate gets opened and closed dozens or hundreds of times a day. It’s built for that. The infrared sensors also mean you’re not constantly worrying about someone walking into a moving gate or a forklift catching an edge.

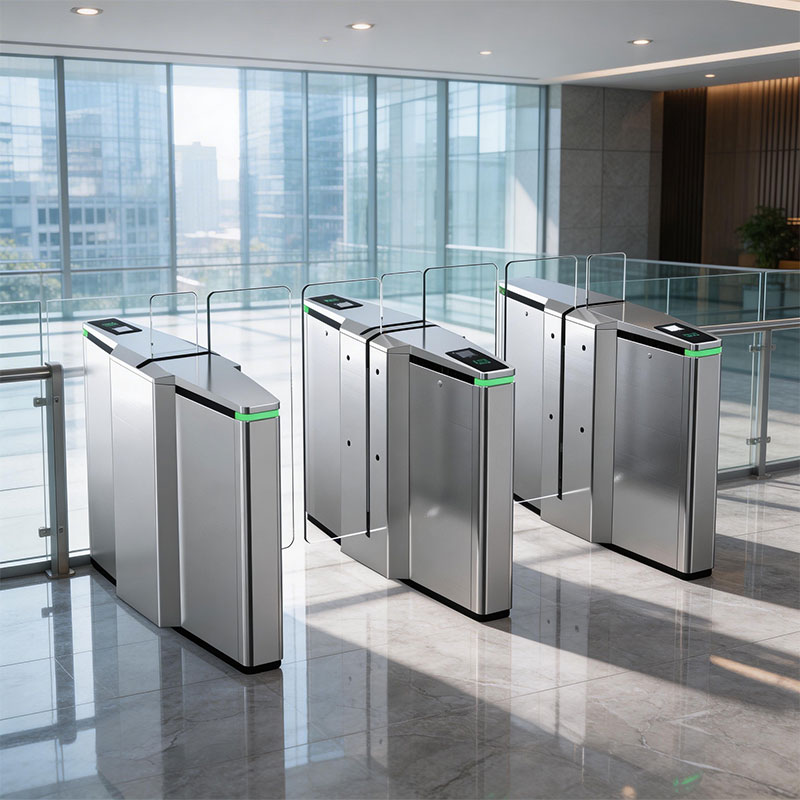

Corporate main gates

Company headquarters or large manufacturing sites want something that looks professional but doesn’t skimp on security. The sliding gate has a clean, substantial look. It handles the morning rush of employees and the occasional visitor without looking like a prison entrance.

Parking lots and garages

Commercial parking lots, office building garages, gated communities — this gate works with license plate recognition for unattended entry. Opens fast enough that cars don’t pile up waiting, and the anti‑pinch features mean you’re not dealing with someone hitting the gate because they pulled up too close.

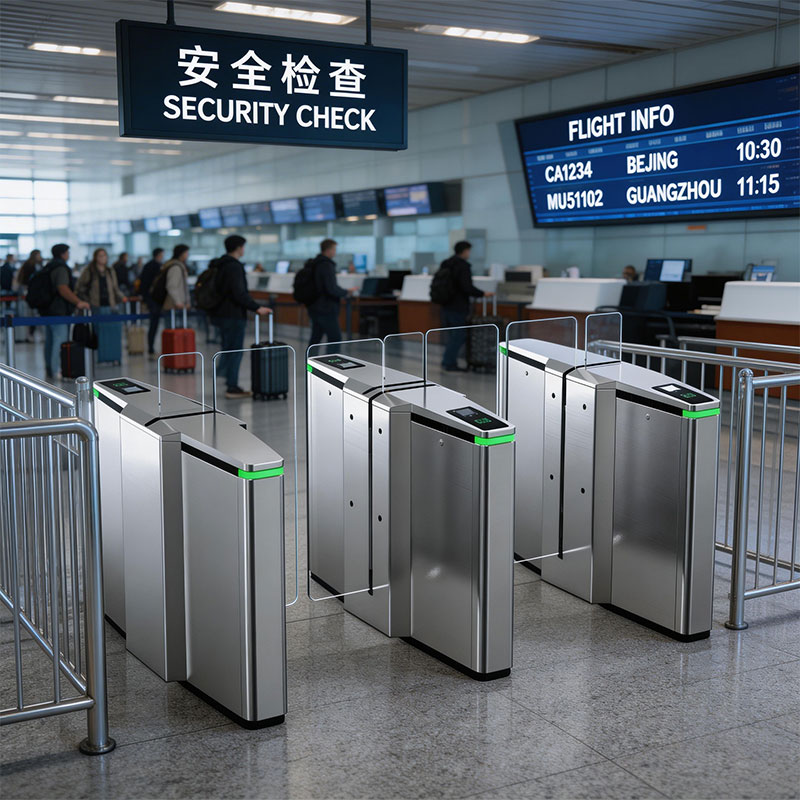

Airport cargo and customs facilities

These places have tight security and constant vehicle movement. The gate can tie into inspection systems and keep logs of everything coming in and out. The heavy‑duty construction means it’ll still be working years later with daily abuse.

Specifications

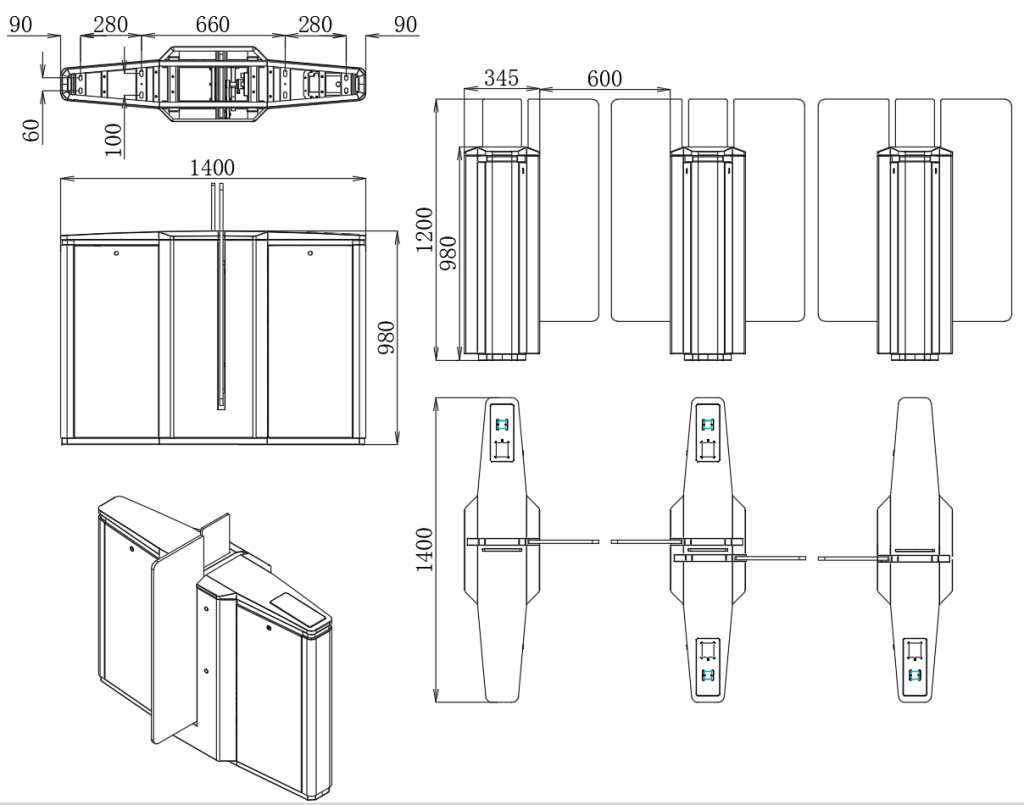

			Feilong 01 Sliding Gate <TJ-FLP01> Product Specification
			Document Number:
			Edition:	A/0
			Revision time:	2021/9/28
			Revised by:
Product Parameters	External dimensions:	1400*345*980MM	Box material:	Cabinet: 304 austenitic stainless steel, 1.5mm thick; Top cover: 304 austenitic stainless steel, 2.0mm thick; Base: Corrosion-resistant electrolytic plate with painted finish, 1.5mm thick.
	Swing arm material:	Transparent tempered glass; T=10mm	Channel width:	550~600
	place:	Indoor unit; suitable for: airports, subways, libraries, office buildings, theaters, factories, scenic spots, train stations, leisure and entertainment venues, etc.
Technical parameters	◆Chassis Material: Brushed SUS304 stainless steel for the chassis; electrolytic plate base with black fine-textured paint. ◆Input Voltage: AC220V±10%, 50Hz ◆Opening Method: RS485/RS232/IO ◆EMC Specifications: Anti-static level 3, air discharge 15KV ◆Surge Protection: 2KV ◆Drive Motor: Servo motor, high-precision clutch mechanism ◆Operating Ambient Temperature: -20℃～75℃ ◆Relative Humidity: 0～90% (non-condensing) ◆Opening Speed: <0.5S (adjustable) ◆Passage Time: Card swipe passage time: 10S (If no one passes through within 10S: the gate automatically closes; the time can be adjusted as needed).
Functional parameters	Basic functions	● Voice broadcast: Features entry/exit gate opening prompts, intrusion announcements, tailgating announcements, and pause announcements.
		● Intelligent alarm linkage: Includes audible and visual alarms for unauthorized entry and reverse passage, and can be linked with other alarm and monitoring devices.
		●Anti-interference: Can effectively prevent external factors such as electromagnetic interference from causing malfunctions in the turnstile.
		●Passage Mode Settings: One-way passage, two-way passage, and free passage can be set via the buttons on the main control panel.
		●Anti-tailgating: Prevents situations where too many people are not allowed to follow at once.
		●Anti-pinch function: When the gate is in the process of closing, the gate will stop closing after detecting an anti-pinch signal.
		●Automatic Reset: After the gate opens, if no passage is permitted within the specified time, the system will automatically cancel the user’s passage permission; the default is 10 seconds, and the passage time can be set via a switch.
		●Access Control: External ports can connect to various biometric devices.
		●Power failure opening: The gate opens after a power failure, and the opening direction can be set.
		● Fault detection: The control board can support fault type detection, assist in analyzing the cause of faults, and handle fault anomalies.
		●Passage indicator: Equipped with passage status indicator lights; and can be configured with an alarm function for exceeding the dwell time limit within the passage.
	Extended functionality	▲ Voice broadcast, expandable voice module, and volume adjustment
		▲Gate opening/closing delay: Sets the delay time after the gate receives the opening signal / sets the delay time after pedestrians have passed through. The default value is 0 seconds.
		▲Swiping cards within the channel △Default: Card swiping within the channel (infrared sensing area) is invalid △Allow: Card swiping verification is allowed within the channel.
		▲Does tailgating and reverse passage block the gate? △Do not close the gate: Reverse/tailgating passage (A swipes card, B passes through) will not close the gate. △Close the gate first, then open it: Reverse/tailgating passage will close the gate once, and then open it again. △Do not reopen the gate after closing it: Reverse/tailgating passage will close the gate, and it will not reopen it after closing.
		▲Fire alarm linkage △Normally open mode: The turnstile remains open; △Normally closed mode: The turnstile remains closed.
		▲System Language Functionality △Chinese: The system can be set to Chinese interface △English: The system can be set to English interface
		▲Passage Modes △Two-way passage: Normal passage with card swiping in both directions. △Two-way free passage: Free passage in both directions, no card swiping required. △One-way passage: Card swiping in one direction (A) opens the gate, allowing normal passage; card swiping in the opposite direction (B) is invalid, and the gate closes. △One-way free passage: Free passage in one direction (A); card swiping in the opposite direction (B) is required for verification. △No passage: Card swiping in both directions is invalid, and the gate enters a locked state.
